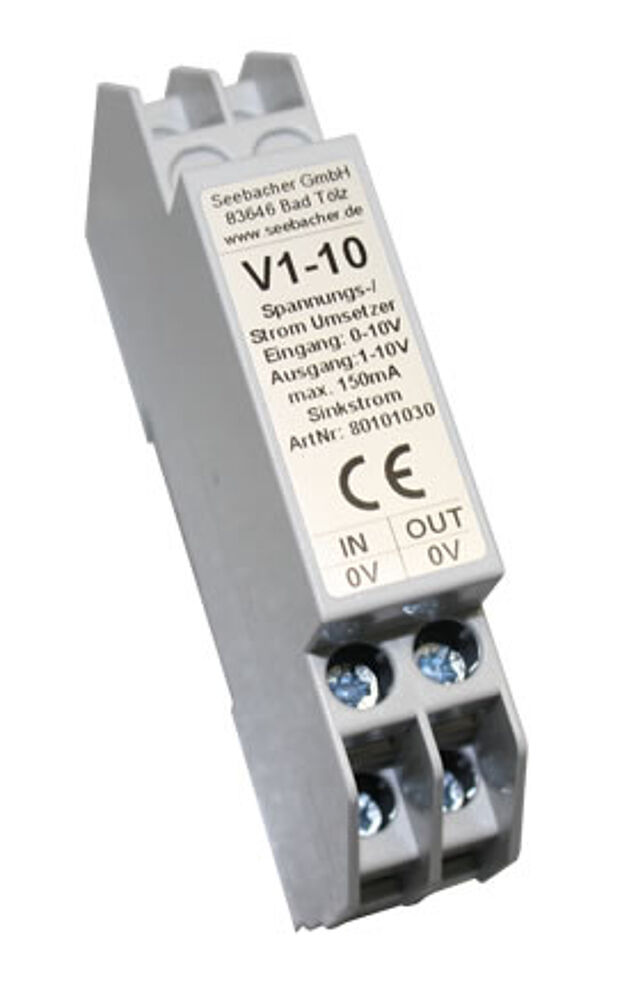

1-10V Sink Current Converter V1-10

The Sink Current Converter converts a 0-10V signal into a 1-10V signal.

Quick Facts

control: 0-10V (source)
output: 1-10V (sink current)
up to 150mA maximum

The Sink Current Converter (voltage/current converter) V1-10 was developed so that 1-10V controllable electronic ballasts can also be controlled with an external control voltage of 0-10V (maximum cable length 700m). It can receive the ECG sink current up to a maximum of 150mA.

Type designation	V1-10
Article no.	80101030
Operating voltage	10V DC
Current consumption	max. 0.150A
Mounting	DIN rail mounting
Connection	screw terminals 2.5mm² (supply voltage)
Cable length	max. 700m
Ambient temperature	max. +50°C
Storage temperature	-25°C to +70°C
Humidity	max. 95% r. h. non-condensing
Protection class	IP30
Design	DIN rail mounting plastic housing light grey, snap-on on 35mm DIN rail 1 HP

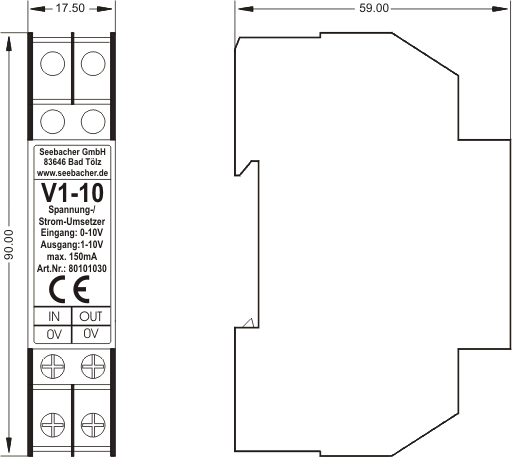

Dimensions	LxWxH 17.5x90x59mm
Weight	40g
Brand	ISYnet
Compliance	CE
