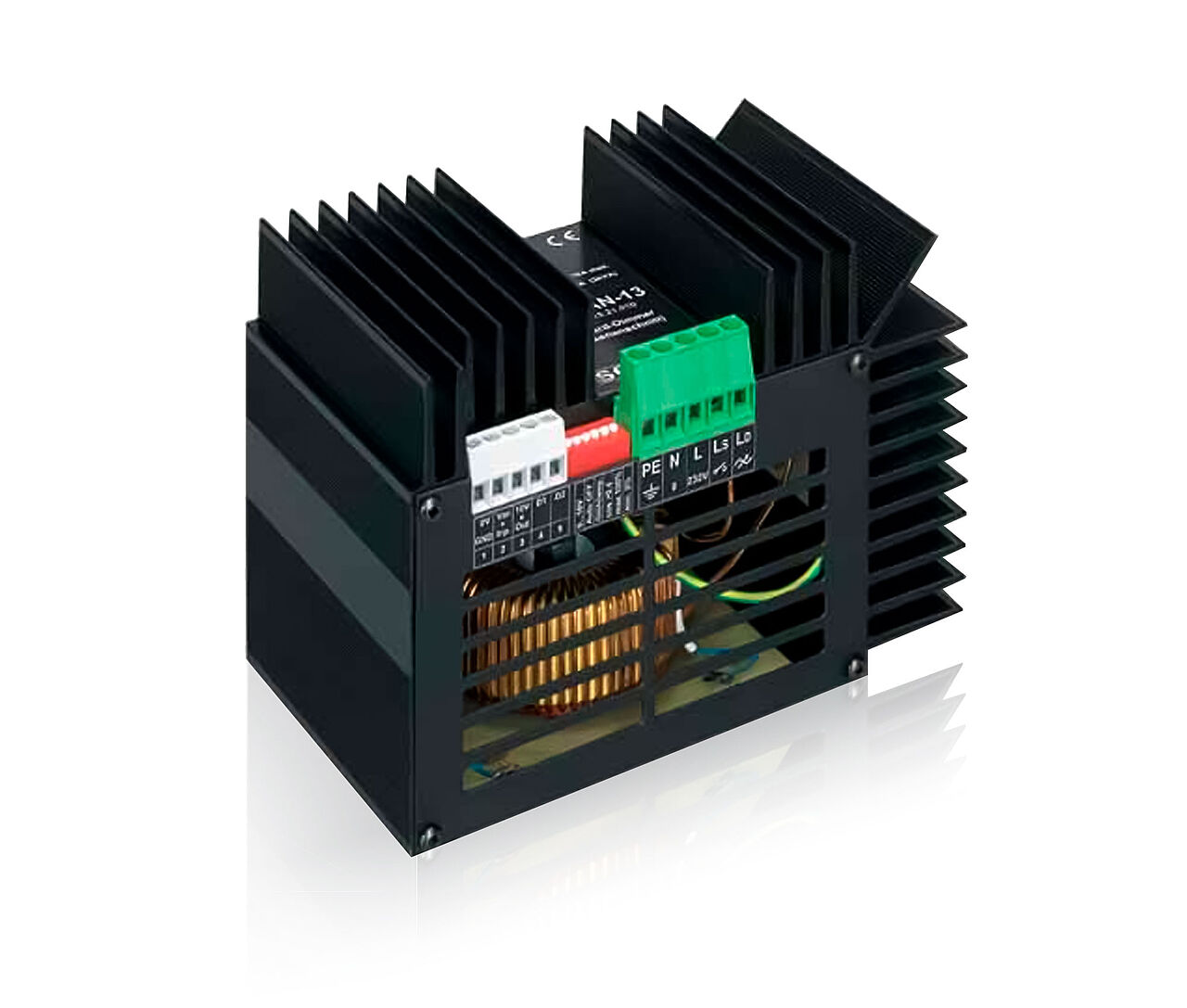

The SDK-AN-13 is a robust dimmer in leading edge technology. On the one hand it can be controlled by different types and on the other hand it can also control different loads:
- control via a potentiometer on the internal voltage source, with an external voltage source or also with a sink current source
- control of light bulbs and high-voltage halogen bulbs as well as low-voltage halogen lamps with electronic transformer
- also suitable for many types of LED retrofits
An automatic or manual switch-off function extends the application range. The SDK has a regulated (dimmable) output 230V/13A with an integrated switch-on / switch-off function.
| Type designation | SDK-AN-13 |
| Article no. | SE215.0001.00 |
| Mains voltage | 230 V ±10% |
| Mains frequency | 50 Hz (option 60 Hz) |
| Technology dimming output | leading edge with triac |
| Maximum load dimming output | 13 A (3kVA) |
| Minimum load dimming output | 5 W light bulb |
| LED peak current | 40A |
| Power loss at nominal load | 30 W |
| Power loss standby | 2 W |
| Cooling | natural circulating air |
| Open circuit voltage | < 50 Vrms |
| Short-circuit protection | circuit breaker 16 A max. |
| Overload protection | by reduction of output voltage in case of overtemperature (status LED flashes) |
| Switch-on delay | approx. 400 ms (mains switch-on) |
| Current rise time | 90 μs, with nominal light bulb load |
| Noise | 30 dB(A), at 1 m distance |
| Operating and error indication | 3 LEDs (Power, Run, Status) |
| Design | Sheet steel with aluminium cooler, mounting on DIN rail 35 mm |
| Dimensions | WxHxD 155x90x113mm (Observe a minimum distance of 10mm to the next dimmer. At full load we recommend a distance of 30mm.) |
| Weight | 1.4 kg |
| Brand | varintens |
| Compliance | CE |
